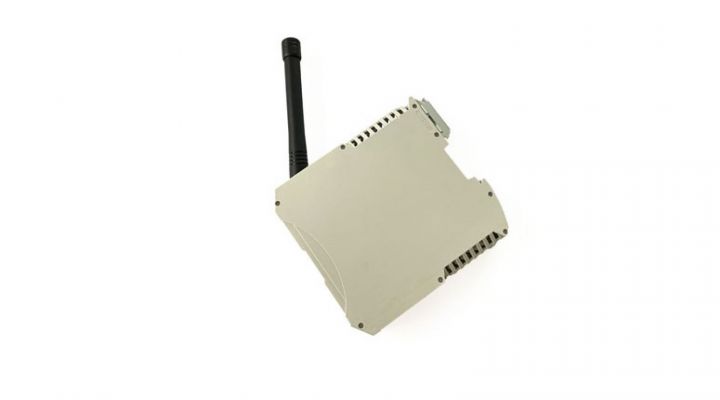

CANtop-Transceiver
- 1 CAN-Interface, optionally 2. CAN-Interface possible
- 1 stop-function / current 5 A / short-circuit protected
- "Listen before talk" technology with automatic frequency management for higher operational safety or frequency-hopping for USA and Canada
- Several systems can be operated at the same time without disturbing each other
- Up to 2 M12 connector

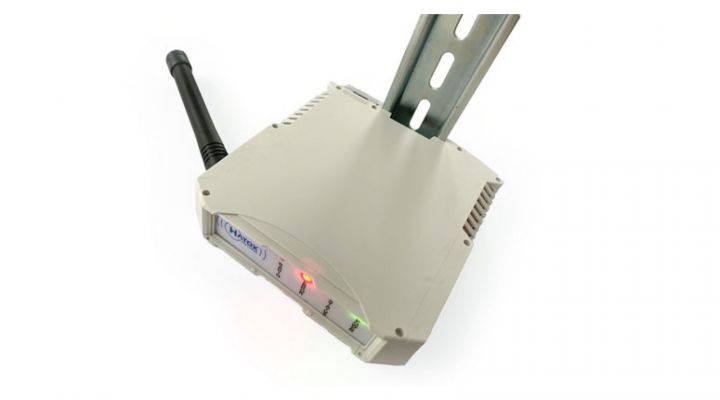

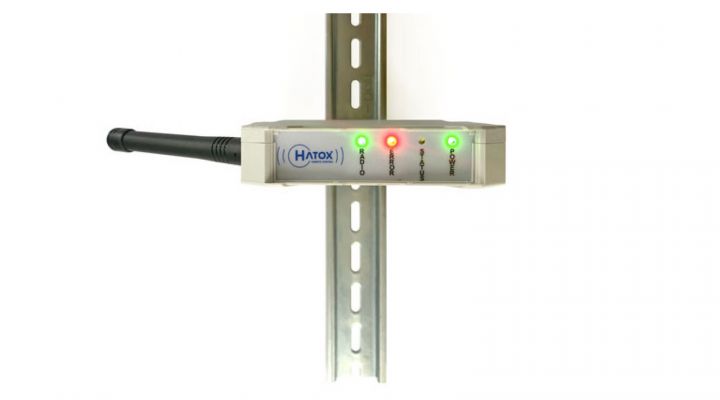

- Easy mounting of the receiver housing by snapping into the DIN top hat rail
General Technical Specification
| Temperature range | –30° to +80°C |
|---|---|
| Type of protection | IP 65 (higher on request) |
| Housing | Top-hat rail housing made of PA |
| Interface | CAN-Bus |
| Protocol | Compatible with CAN-specification 2.0B, ISO 11898-1, CAN-open, CAN Kingdom |
| Data rate | up to 1 Mbit/s |
| Other interfaces | RS 232, RS 485, Modbus |
| Technology | Transceiver (bidirectional, half-duplex) |
| Frequency | 433.075–434.775 MHz (69 channels) / Europe / 902–928Mz / USA & CANADA |
| Output Power | adjustable up to 10 mW |
| Modulation | FSK |
| Transmission method | TDMA (Time Division Multiple Access) for Europe Frequency hopping for USA and CANADA |
| Distance | approx. 300 meters / 1000 feet (depending on environment) |
| Supply voltage | 6…36 V DC |
| Power consumption | 80 mA @ 12 V DC |
| Weight | 102 g without antenna and cable |
| Size | 11.4 × 10.0 × 2.3 cm 4.4 × 3.9 × 0.9 inch (length x width x height) |
