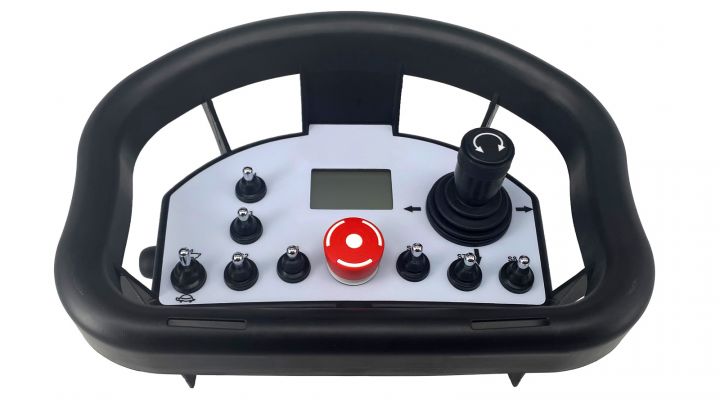

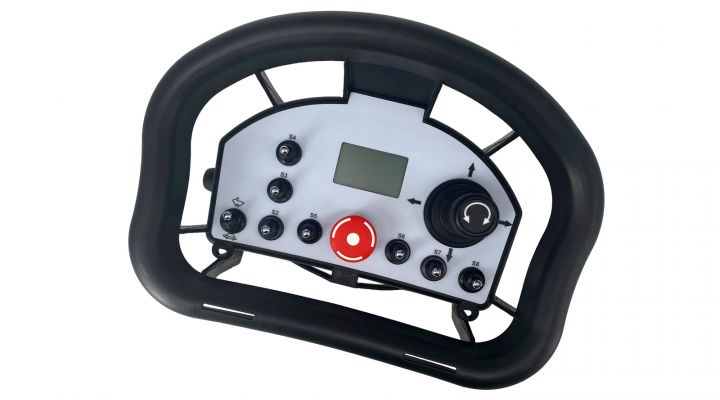

HATwheel Rubber housing

HATwheel

Rubber housing for extreme rough applications
Customized assembling of joysticks, push buttons and display
Graphic display 128 ×64 dots with backlight for indicating HATOX-specific data (signal strength, battery condition, frequency indication, etc.) and data feedback via CAN-bus
Disposable standard AA-batteries or rechargeable batteries may be used
Permanent operation up to 40 hours possible (without backlight) with rechargeable batteries of 2700 mAh
"Listen before talk"-technology with automatic frequency management for higher operational safety or frequency hopping for USA and Canada
Several systems can be operated at the same time without disturbing each other

Temperature range	–20° to +80°C (optionally with heating foil –40° to +80°C)
Type of protection	IP 65 (higher on request)
Housing	TPE
Technology	Transceiver (bidirectional, half-duplex)
Frequency	433.075–434.775 MHz (69 channels) / Europe / 902–928Mz / USA & CANADA
Output Power	adjustable up to 10 mW
Modulation	FSK
Transmission method	TDMA (Time Division Multiple Access) with
technology for Europe; frequency hopping for USA and Canada	Distance
approx. 300 meters / 1000 feet (depending on environment)	Supply voltage
2.0 .. 4.5 V DC (2 AA-NiMh-cells)	Power consumption
65 mA @ 2.4 V DC	Weight Batteries
990 g (without batteries) + 60g	Size
