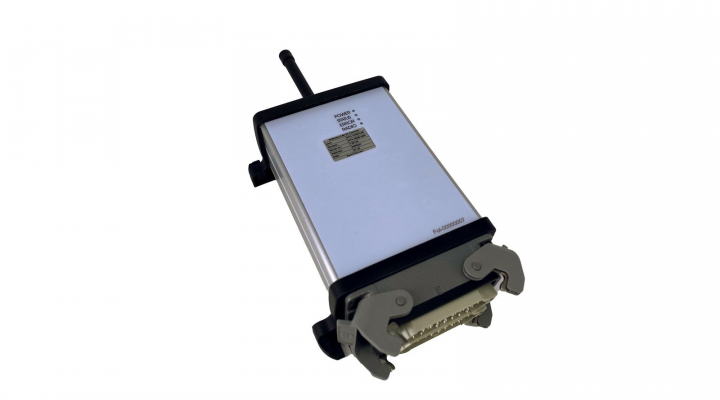

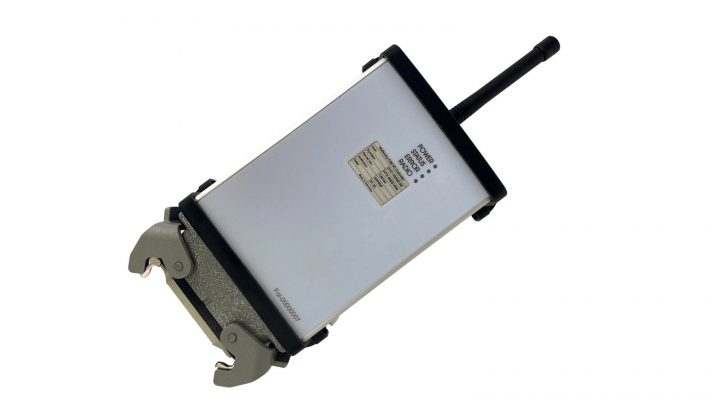

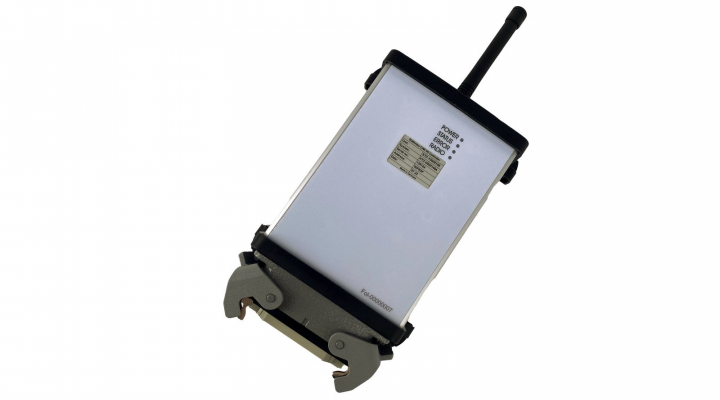

CAN-I/O-Transceiver M

    HATOX | Safety radio remote controls for professional use
    HATOX | Safety radio remote controls for professional use
    HATOX | Safety radio remote controls for professional use
    HATOX | Safety radio remote controls for professional use
  • 1 CAN-interface
  • 12 on/off-outputs, current [lt] 3A DC / short circuit protected, of which 8 outputs max. can be designed proportionally
  • 4 proportional or on/off outputs (5A H-bridge for DC-motor and hydraulic applications)
  • 4 optocoupler inputs, 2 of these as 2 x 0-10 V or 2 x Danfoss outputs possible
  • 4 x 4-20mA inputs, 0-10 V or 4-20 mA (instead of 4 on/off-outputs)

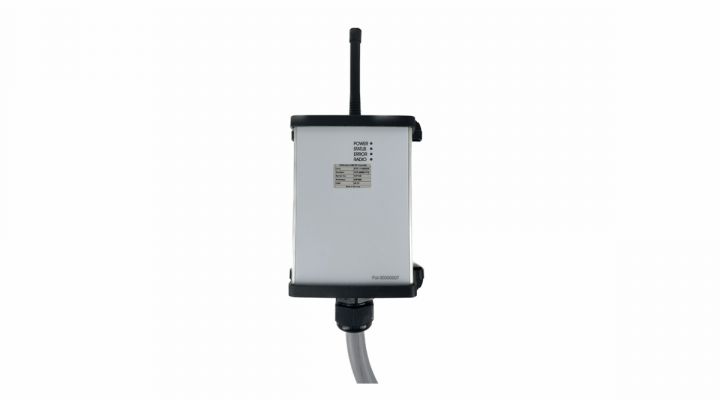

  • Various connectors or cable glands possible
  • The described variation can be triplicated in the CAN-I/O-Transceiver M, i.e.  e.g. up to 36 on/off outputs and 12 proportional outputs etc.
  • Integrated HF-module optionally possible


General technical data

Temperature range–30° to +80°C
Type pf protectionIP 65 (higher on demand)
Housingaluminum profile withPA end caps
Interfacecompatible with CAN-specification 2.0B, ISO, 11898-1
Protocolcompatible with CAN-specification 2.0B, ISO 11898-1, CANopen, CANKingdom, J1939
Data rateup to 1 Mbit/s
Supply voltage6 .. 36 V DC
Power consumption100 mA @ 12 V DC
Weightdepending on type
Size19.5 x 10.0 x 7.5 cm (length x width x height)
